Dual Illuminated Reticle Provides both red and green illumination for precise aiming under low-light conditions.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

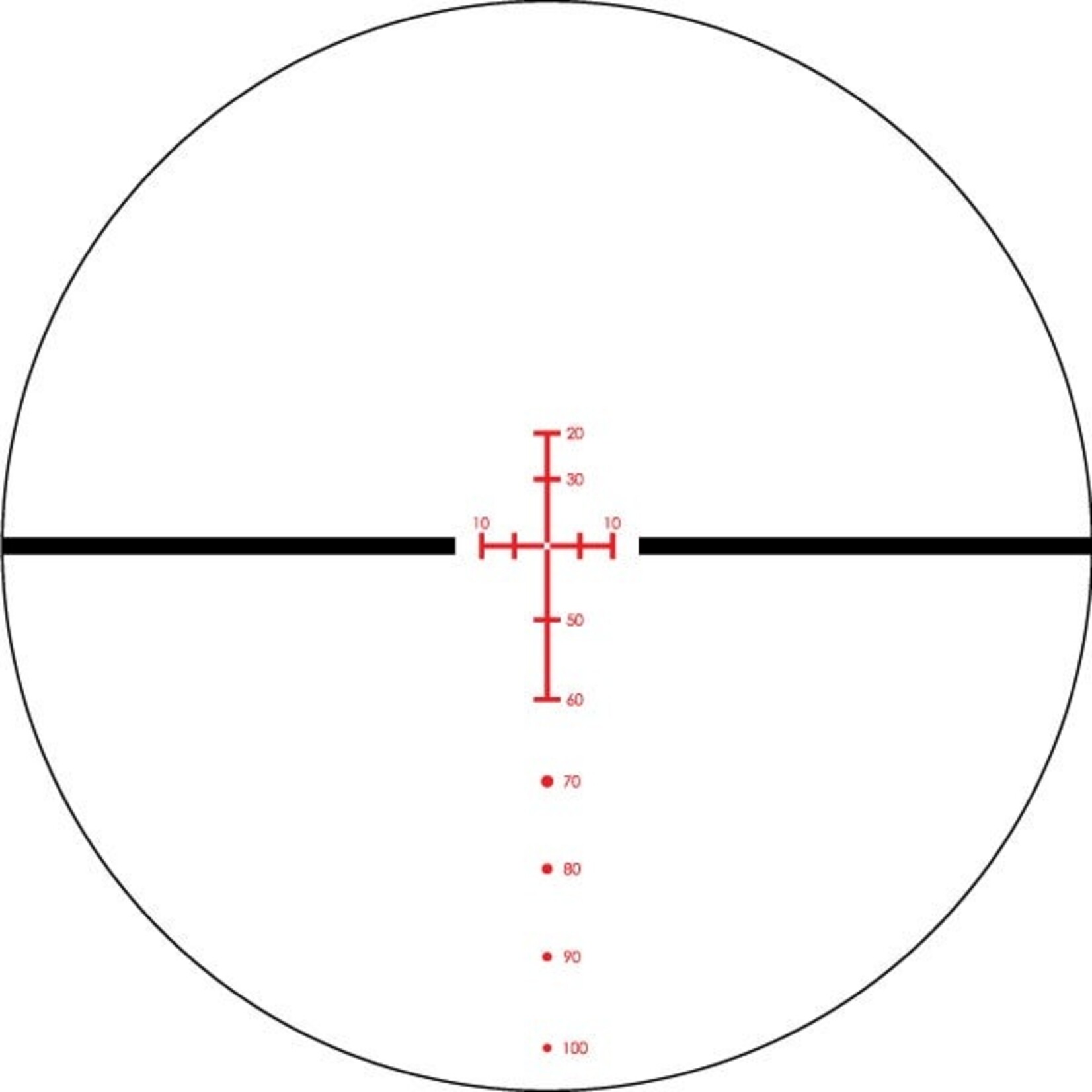

Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Shockproof Rugged construction withstands recoil and impact.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Matte Anodized Finish Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position
Fast Focus Eyepiece Allows quick and easy reticle focusing.
Magnification/FPS Ring Combines both the magnification power and the FPS setting to easily match to any crossbow for accurate reticle subtensions.
Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
Magnification 2-7x
Objective Lens Diameter 32 mm
Eye Relief 2.7 inches
Field of View 57.5’ – 16.4’ @ 100 yards
Tube Size 30 mm
Turret Style Low Capped
Adjustment Graduation 1/2 MOA
Travel Per Rotation 30 MOA
Max Elevation Adjustment 160 MOA
Max Windage Adjustment 160 MOA
Parallax Setting Fixed @75 yds
Length 9.5 inches
Weight 14 oz
Crossfire® II 2-7x32 Crossbow Scope Dimensions (in inches)
| Lengths |
| L1 |
L2 |
L3 |
L4 |
| 9.5 |
1.7 |
1.5 |
4.5 |

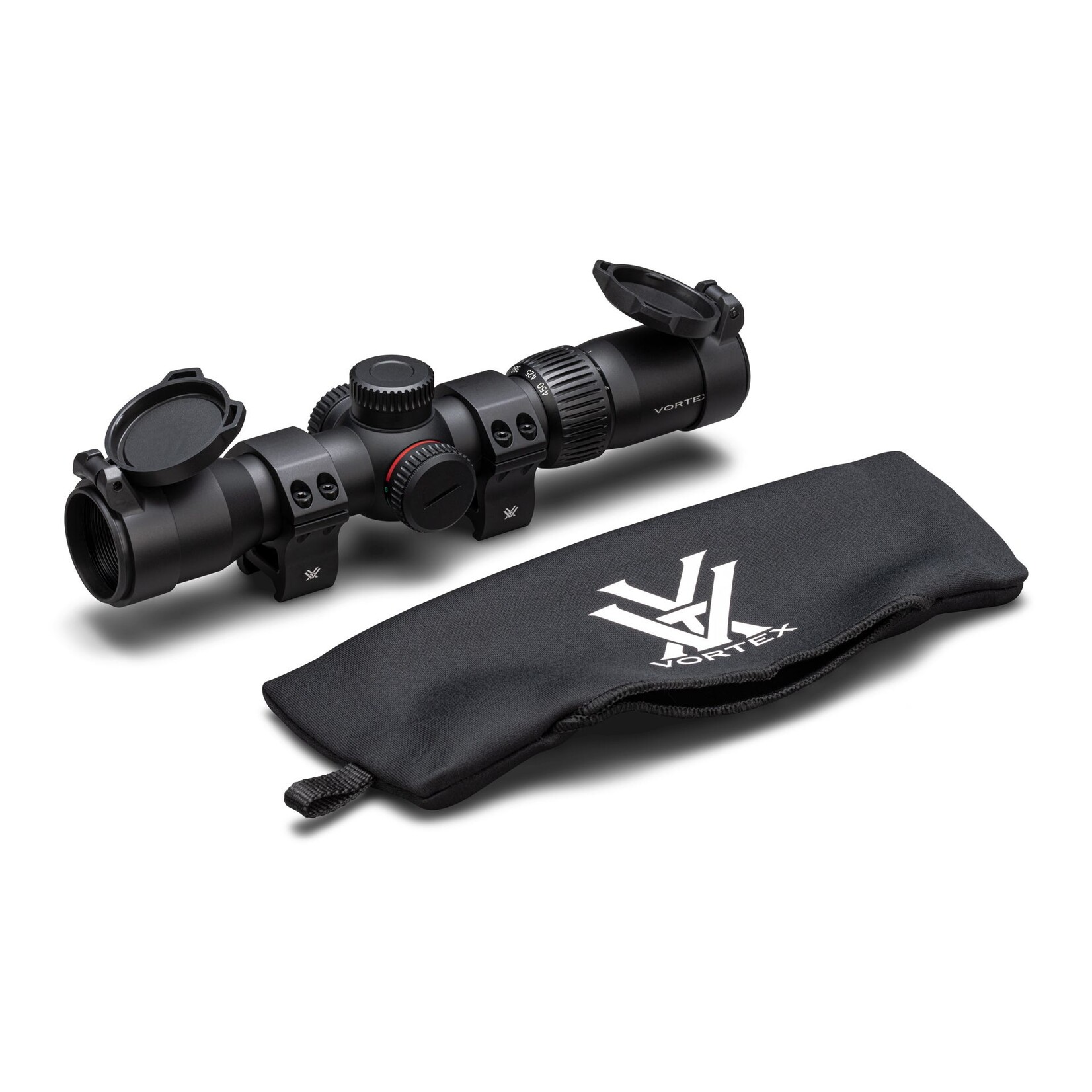

Included in the Box
- 2 - 30mm rings
- Flip caps (set)
- Neoprene cover
- Lens cloth
- CR2032 battery
- T-15 Torx wrench
